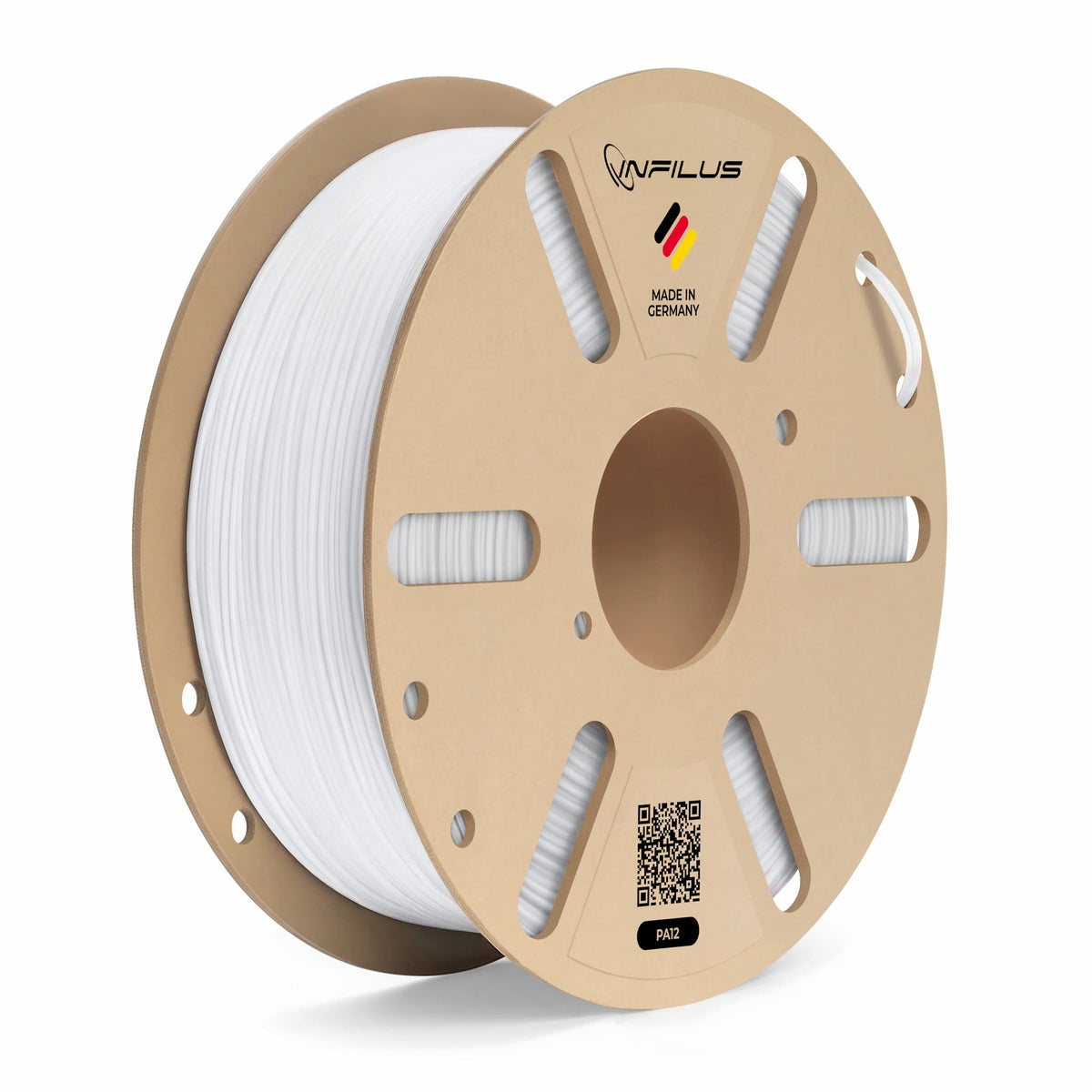

PA12

PA12

€59,90
€59,90
SAVE Liquid error (snippets/price line 119): Computation results in '-Infinity'% Sold out
DIAMETER 1.75 mm
NET WEIGHT 1 kg
TOLERANCE ±0.02 mm

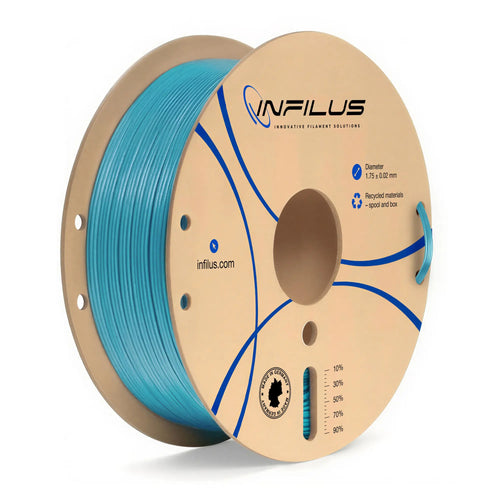

Cyan

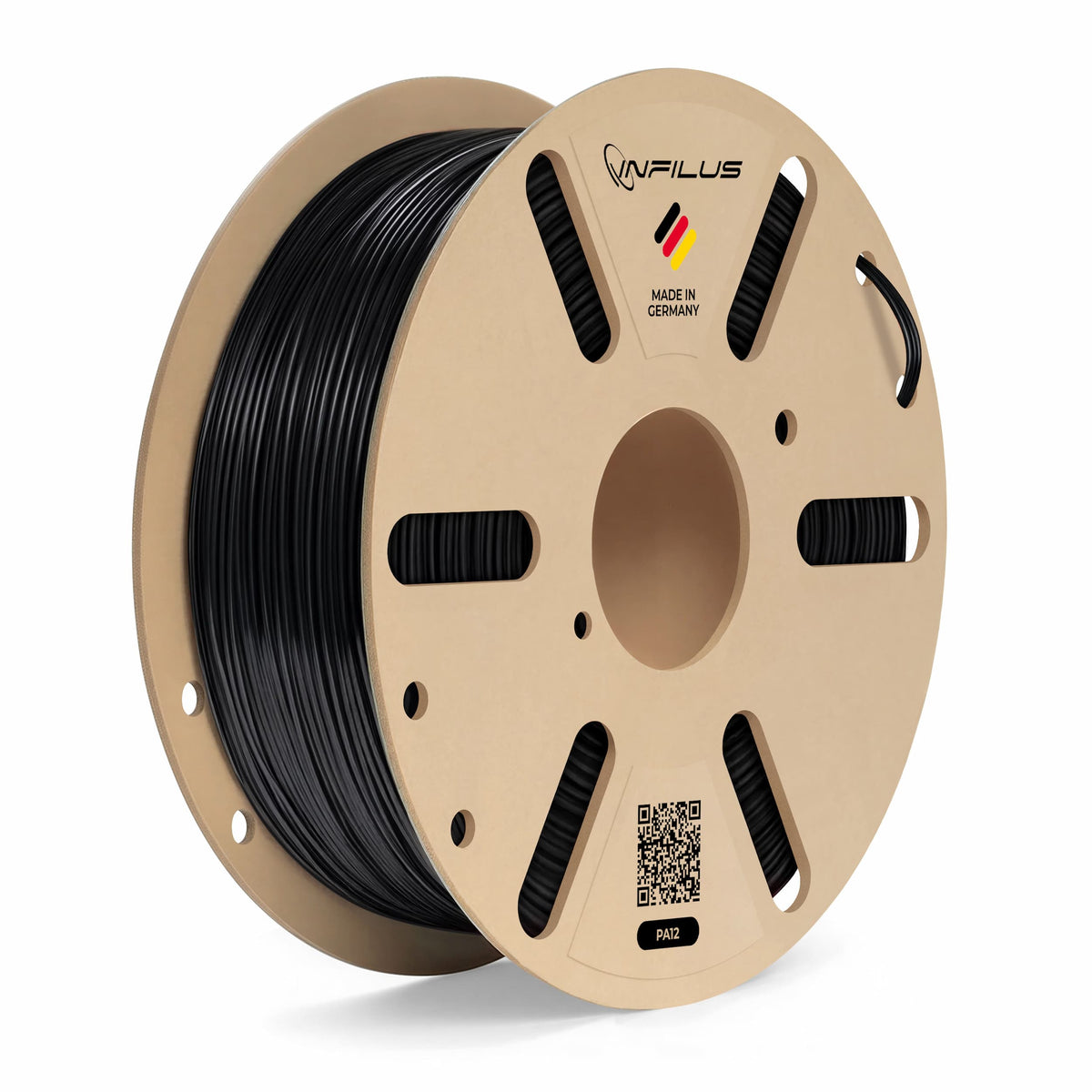

True Black

Pure White

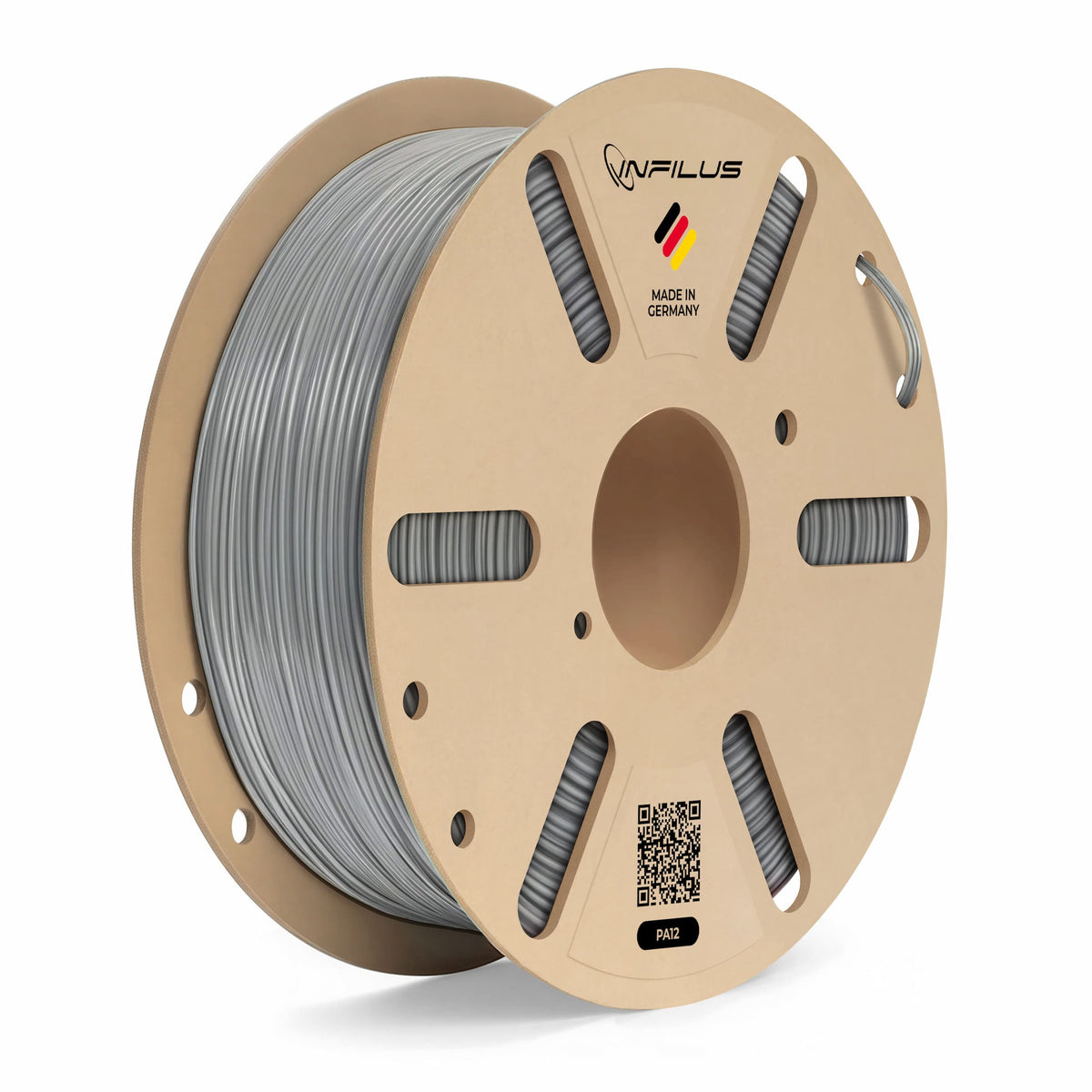

Silver Gray

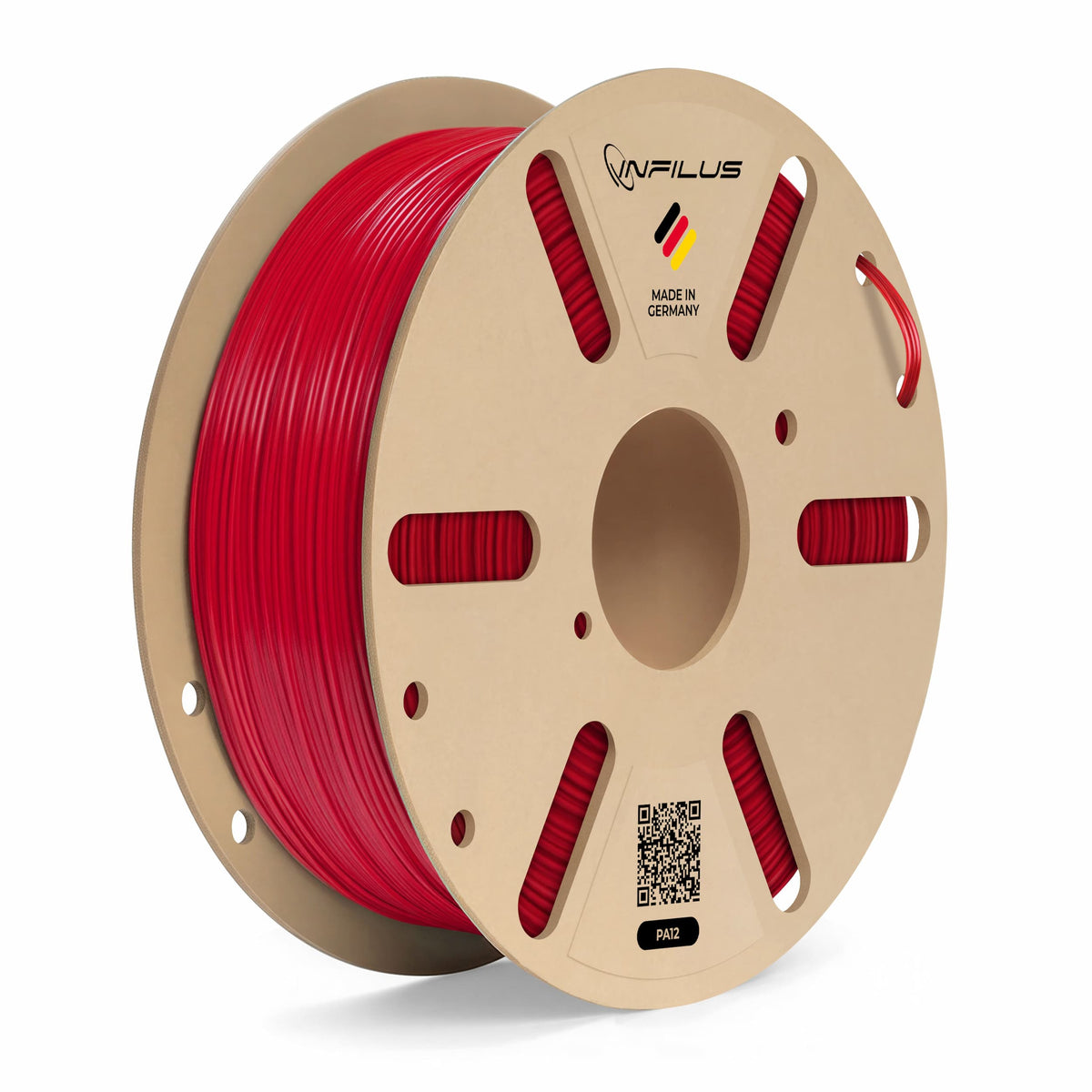

Fire Red

Signal Orange

Bright Yellow

Lime Green

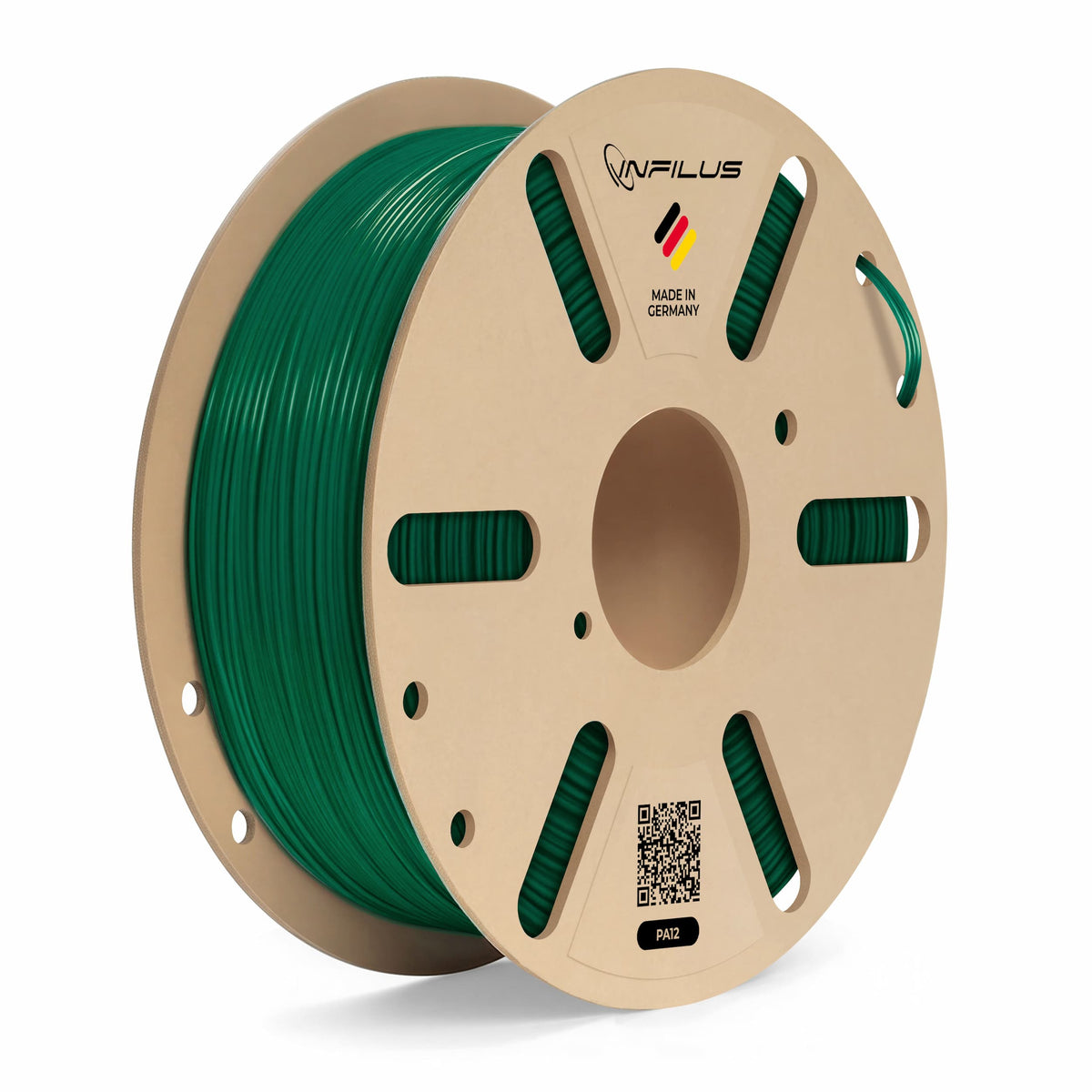

Forest Green

Sky Blue

Royal Blue

Navy Blue

Purple

Magenta / Pink

Hot Pink

Baby Pink

Teal

Brown

Tan / Beige

Gold / Brass

Copper

Glow-in-Dark Green

Transparent Clear

Translucent Blue

Marble White

Matte Black

Rust / Terracotta

Lavender

Olive

Ivory / Cream
±0.02mm Precision Guarantee Manufactured in Germany with strict laser-monitored diameter control for jam-free, reliable printing.
PRIORITY DISPATCH
In Stock — Ships within 24 hours from EU Warehouse
Order Ready: ...
Delivered: ...
VISA Mastercard Apple Pay PayPal
SSL Encrypted & 100% Secure Checkout
PA12

PA12

€59,90
€59,90
SAVE Liquid error (snippets/price line 119): Computation results in '-Infinity'% Sold out
View full details
SUPPLY CHAIN SECURITY

100% Extruded in Germany.

We don't rely on third-party manufacturers. Every spool of Infilus filament is engineered and extruded in our own facility. This means absolute batch consistency, zero hidden raw material changes, and a supply chain under our full control.

  • Zero Third-Party Sourcing
  • Direct Quality Control
  • Lightning-Fast EU Dispatch
Infilus Germany Factory Map
HQ // FACTORY RAIN, GERMANY

Material Overview

PA12 (Polyamide 12, Nylon 12) is a high-performance engineering thermoplastic known for its excellent strength, toughness, and chemical resistance. It offers a unique combination of rigidity and flexibility, making it highly suitable for demanding functional applications.

PA12 exhibits low moisture absorption compared to other nylons, resulting in better dimensional stability and more consistent print quality. It also provides excellent layer adhesion, fatigue resistance, and resistance to oils, fuels, and many chemicals.

This material is widely used for mechanical components, gears, snap-fit parts, and industrial applications where durability and long-term performance are required. Due to its engineering nature, PA12 benefits from controlled printing conditions and proper drying before use.

Physical Attributes

MATERIAL BASE PA12
DIAMETER 1.75 mm
TOLERANCE ±0.02 mm
MAX OVALITY 0.005 mm
SPOOL LENGTH 410 m
NET WEIGHT 1 kg

Performance Index

PRINTABILITY 5/10
STIFFNESS 4/10
HEAT DEFLECTION 8/10
IMPACT STRENGTH 9/10

Recommended Print Settings

Baseline values for standard 0.4mm nozzles. Advanced industrial polymer. Requires an enclosed printer and hardened nozzle.

NOZZLE SIZE 0.4 mm
NOZZLE TEMP 250°C - 270°C
BED TEMP 80°C - 100°C
PRINT SPEED 30 - 60 mm/s
COOLING FAN 0% - 20%
RETRACT (DIRECT) 1 - 2 mm
RETRACT (BOWDEN) 4 - 7 mm
RETRACT SPEED 25 - 45 mm/s
FACTORY PRO TIP
PA12 is sensitive to moisture and should be properly dried before printing. Using an enclosed printer and maintaining stable environmental conditions will significantly improve layer adhesion and overall print quality.

Technical Documentation

Download official documents for material properties and safety handling.

PDF
Technical Data Sheet (TDS) MATERIAL PROPERTIES
[ DOWNLOAD ]
PDF
Safety Data Sheet (MSDS) SAFETY & HANDLING
[ DOWNLOAD ]

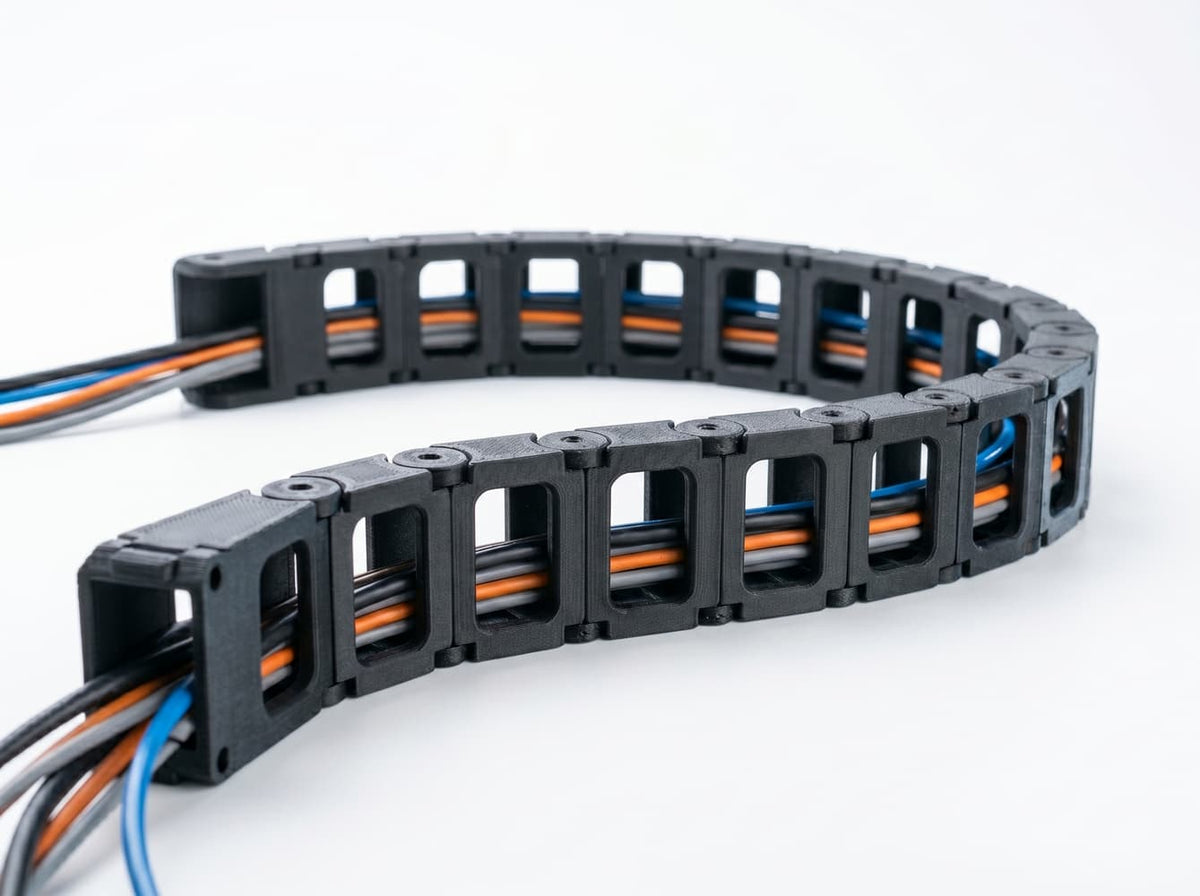

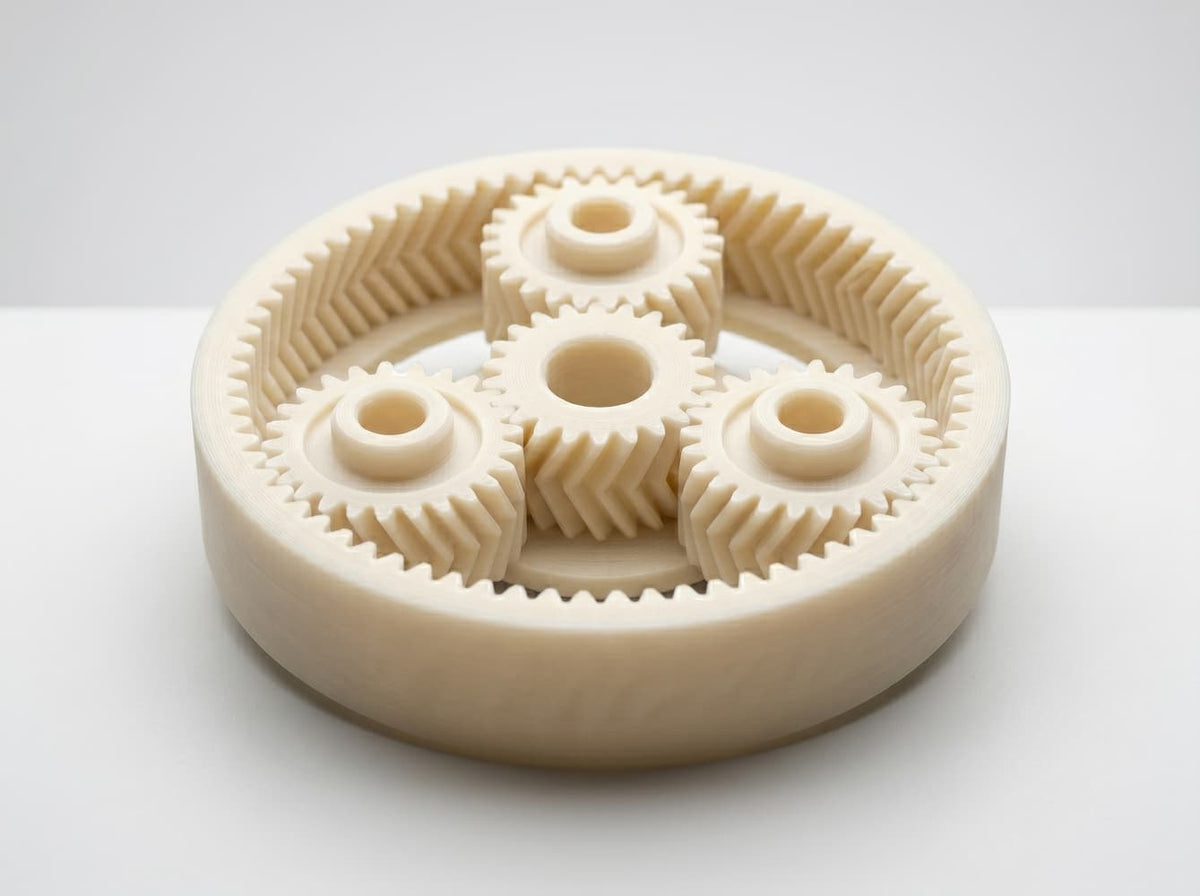

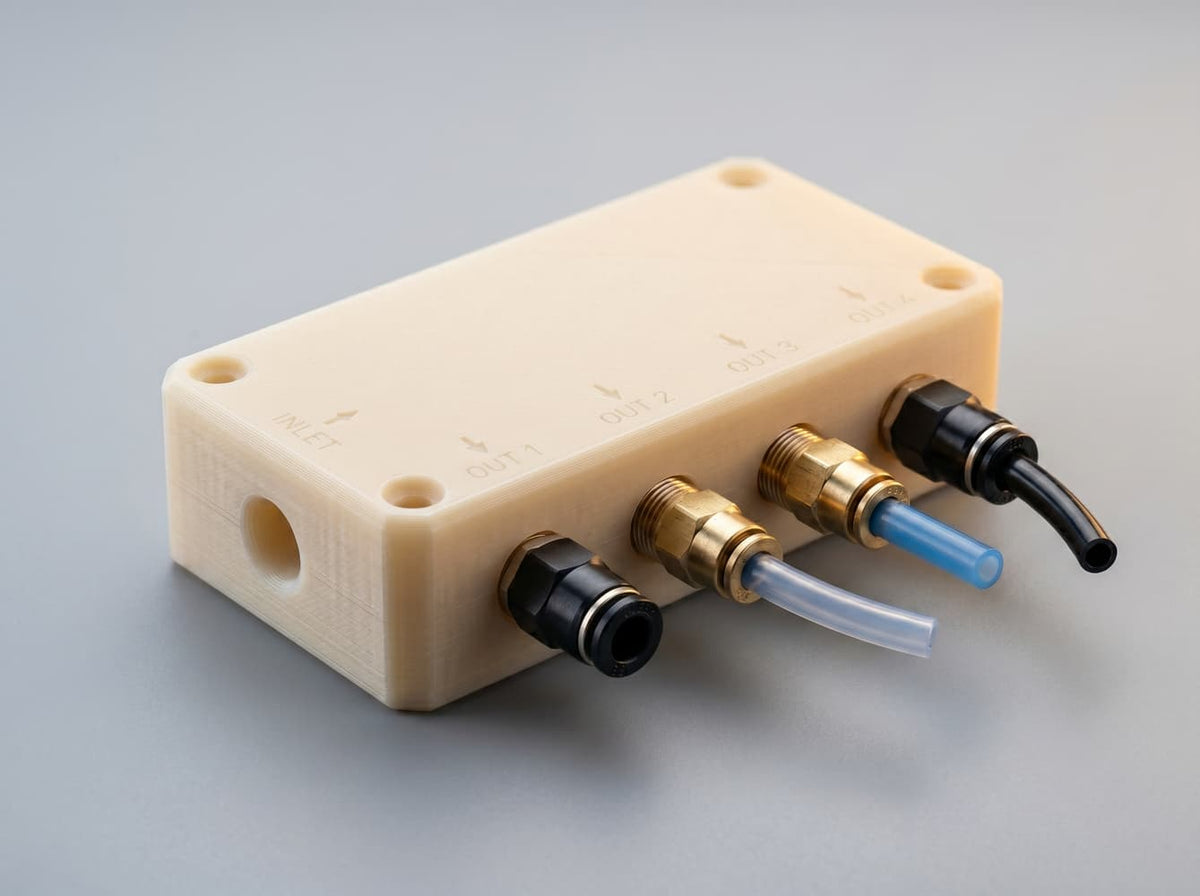

Real-World Applications

Functional parts, prototypes, and end-use mechanical components printed with Infilus PA12.

PA12 application
PA12 application
PA12 application
